Not Sure If Your Solar Installation Is Performing Correctly?

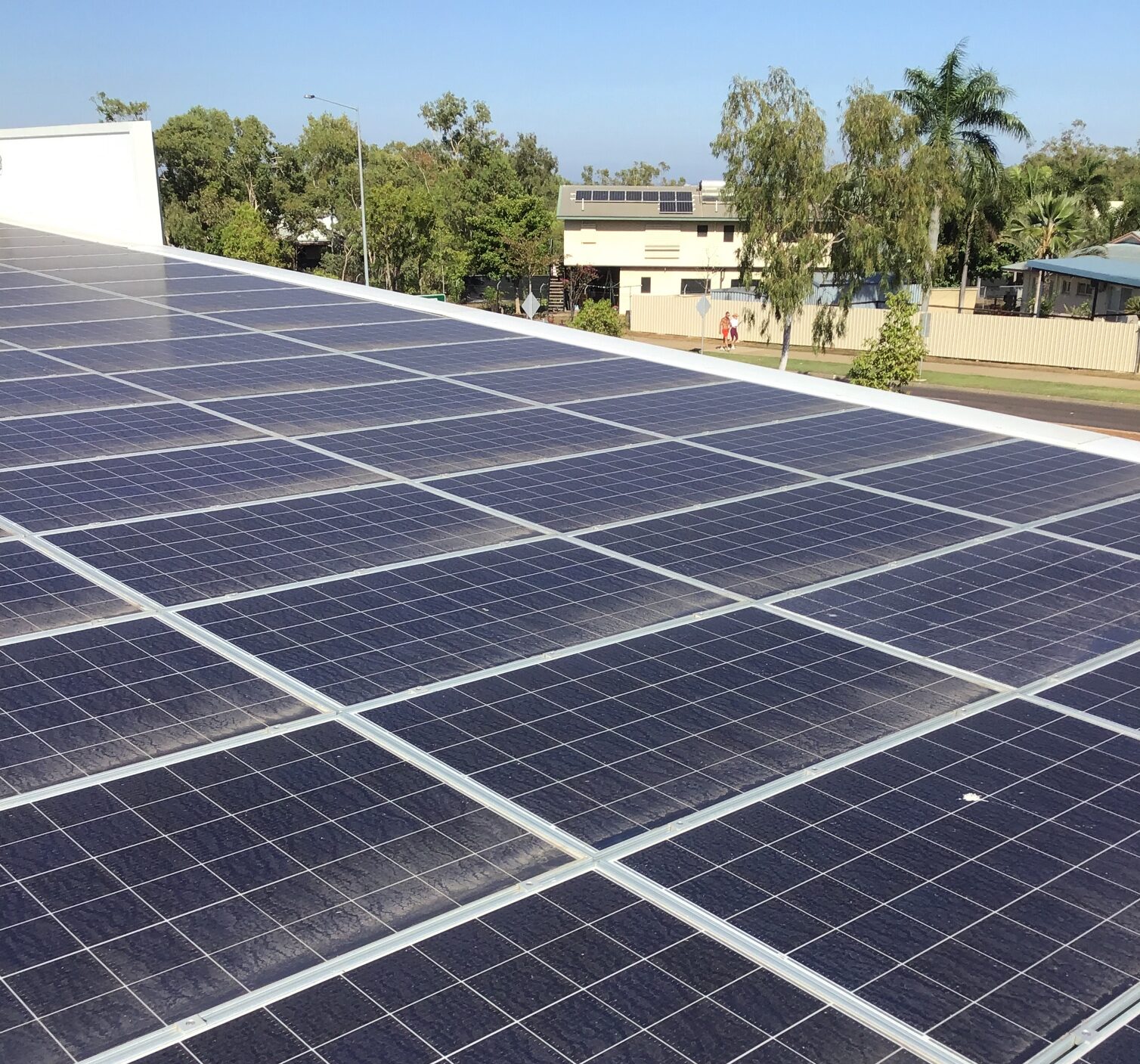

Harrison here from Florance Electrical. Today I am looking at a 30 kW solar installation that is not generating the power that it should be. There could be a few reasons for this, and we will go through our thoughts and findings from this premises.

Start With the Cleanliness of the Panels

A good first place to inspect is always the cleanliness of the solar panels. Dirty panels can cause a 5% to 10% performance drop depending on the severity. For such an easily identifiable and quick task, it is well worth the benefit. We always recommend a harness when working on a roof, as it is dangerous and care should be taken whether it is a ground level home or a single storey.

When cleaning solar panels, always clean them when the ambient temperature is reasonably cool, such as early in the morning or later in the afternoon. The top layer of a solar panel is glass, and a sudden fast change in temperature on the surface can cause it to shatter. Use a soft bristled indoor broom and cool soapy water (car wash is fine) to gently scrub the panels down, then hose off all residue. Cleaning is usually quick unless the panels have not been maintained and have a heavy build-up of dirt, mould and grime. For more, read our guide to solar panel cleaning and maintenance.

Testing a Single Panel Before and After Cleaning

We would not normally do this, but this system is severely lacking in performance, so we performed tests to verify existing faults from a competitor’s installation. Before cleaning, the open circuit voltage of the dirty panel measured 32 VOC and 8.2 amps under load. After cleaning it measured 33 VOC and 8.93 amps. That is a big change in performance simply from cleaning one panel.

What We Found: Loose DC Connectors

Whilst testing the system, it became apparent very quickly that the panels were not the issue. The cabling installed by the competitor was connected poorly. We found multiple MC4 weatherproof connectors that were connected so loosely that the DC cabling was falling out of the plugs. Initially, we suspected several faulty panels because the voltages on each string were lower than expected. All of the panels were fine. It was the installed wiring, which could have led to a dangerous situation as well as poor performance.

Take care on a roof when a solar system is present, because there are high levels of DC or AC voltage on the rooftop. If installed correctly, it is completely safe in normal operating conditions. Not all solar installations in Darwin are installed to the same standard.

The Result

If you own a solar system, you can see why this matters: your panels may look fine from the ground while your output is dropping. After checking all of the connections, replacing many MC4 plugs and cleaning all of the very dirty panels, we were able to return the system to peak performance, so the client can enjoy a great return on investment. You can expect the same result when your system is checked and corrected early.

Why Your Solar System Should Be Inspected

Even if your system is performing well, you should be aware that it is strongly advised that you have it inspected by an electrician, preferably with CEC accreditation, because parts of a solar system deteriorate over time. Solar installations are not something to install and forget. They must be maintained for safety and performance by a qualified person.

Frequently Asked Questions

How much does dirt reduce solar output?

In this case study, dirty panels caused a drop of 5% to 10% depending on how severe the build-up was.

How often should a solar system be inspected?

Even a system that appears to perform well should be inspected by a qualified electrician, because connectors, cabling and other parts deteriorate over time.

Is it safe to clean solar panels myself?

Only if you can reach them safely. Use a harness for roof work, clean when the panels are cool and use a soft broom with cool soapy water. If in doubt, ask a professional.
